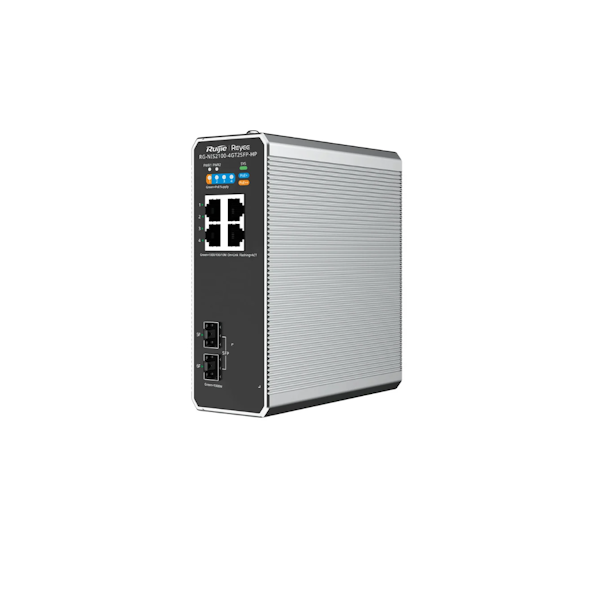

Ruijie Reyee RG-NIS2100-4GT2SFP-HP | 6-Port Cloud-Managed Industrial L2 Switch
Rugged Performance for Harsh Environments & High-Power Surveillance
The RG-NIS2100-4GT2SFP-HP is a 6-port industrial cloud-managed Layer 2 switch engineered specifically to withstand punishing environments like outdoor CCTV setups, manufacturing floors, coastal zones, and dusty plant rooms.
Featuring 1 x PoE++ (up to 90W) port for high-draw PTZ cameras or specialized equipment, 3 x PoE+ ports, and 2 gigabit SFP optical uplinks, this compact switch delivers robust, reliable performance where standard commercial switches fail.
Key Features
- High-Power PoE Capability: Equipped with 1 ultra-powerful PoE++ port (up to 90W output) and 3 PoE+ ports to easily drive high-demand security devices, thermal cameras, and PTZs. Adjustable power budget capabilities via the web interface.
- Industrial-Grade Temperature Tolerance: Housed in a durable full-aluminum case designed for natural cooling (fanless), guaranteeing stable operation in extreme temperatures ranging from -40°C to +75°C (-40°F to 167°F).
- Superior Surge & Interference Protection: Built tough with 6kV surge protection against lightning and voltage spikes, alongside EMC Level 4 defense against severe electromagnetic interference.
- Flexible Fiber Uplinks: Includes 2 x Gigabit SFP slots for long-distance optical fabric connections, minimizing signal degradation across sprawling sites.
- Smart Cloud Management: Managed effortlessly via the Cloud App or web portal. Enjoy remote monitoring, topology visualization, instant fault alerts, and maintenance anywhere, anytime.
- Rapid Deployment: Supports standard DIN-rail mounting to fit neatly inside outdoor weatherproof enclosures and cabinets.
Technical Specifications
| Feature | Specification |
|---|---|
| Downlink Ports | 4 x 10/100/1000BASE-T RJ45 ports |
| PoE Allocation | Port 1: IEEE 802.3bt (PoE++ up to 90W) Ports 2–4: IEEE 802.3at/af (PoE+ up to 30W) |
| Uplink Ports | 2 x 1000BASE-X SFP Optical Ports |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.9 Mpps |
| Enclosure Protection | IP40 Industrial Grade |
| Power Input | DC Input (46–57 V DC range) (Power supply sold separately) |
| Dimensions (W x D x H) | 50 mm x 155 mm x 130 mm |
| Weight | 0.79 kg |
| Warranty | 5 Years |
What’s in the Box
- 1 x RG-NIS2100-4GT2SFP-HP Industrial Switch
- 2 x Wall-Mounting Brackets
- Mounting Screws
- Quick Installation Guide & Warranty Card
