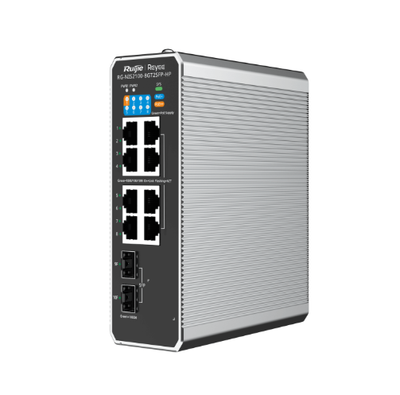

Ruijie Reyee RG-NIS2100-8GT2SFP-HP 10-Port Industrial PoE Switch
Rugged Performance. Uncompromising Power. Built for Extremes.
Engineered for harsh environments and mission-critical deployments, the Ruijie Reyee RG-NIS2100-8GT2SFP-HP is a heavy-duty 10-port industrial Layer 2 managed switch. Designed to thrive where standard commercial switches fail, it delivers robust performance, high-power PoE output, and reliable local management—making it the ultimate choice for IP surveillance, industrial automation, outdoor enclosures, and remote infrastructure.
Key Features
-
High-Power PoE Capabilities: Equipped with 1 x ultra-powerful PoE++ (up to 90W) port and 7 x PoE+ (802.3at/af) ports, providing ample budget for high-draw devices such as PTZ security cameras, high-performance wireless access points, and industrial sensors. Total PoE budget reaches up to 300W.
-
Full Gigabit Connectivity: Features 8 x 10/100/1000BASE-T RJ45 ports and 2 x Gigabit SFP optical uplink ports to guarantee high-bandwidth transmission over long distances without bottlenecks.
-
Industrial-Grade Reliability: Built into a robust full-aluminum housing with an IP40 rating for superior protection against dust and solid particles. It operates flawlessly in extreme ambient temperatures ranging from -40°C to +75°C.
-
Advanced Surge & Interference Protection: Features 6kV surge protection against lightning and voltage spikes, alongside EMC Level 4 protection against electromagnetic interference.
-
Rapid Network Failover: Supports instant Ethernet Ring Protection Switching (ERPS) configuration via a physical hardware DIP switch, ensuring rapid service failover and maximum network uptime.
-
Flexible Installation: Compact, fanless design optimized for tight spaces, supporting standard DIN-rail or wall mounting inside waterproof outdoor cabinets. Includes a physical hardware alarm port for immediate external power-failure notification.
Technical Specifications
| Feature | Specification |
| Total Ports | 10 Ports |
| Downlink Ports | 8 x 10/100/1000M Base-T RJ45 ports |
| Uplink Ports | 2 x 1000M SFP slots |
| PoE Port Allocation | Port 1: PoE++ (up to 90W); Ports 2–8: PoE+ (802.3at/af) |
| PoE Power Budget | Default: 228W (Max: 300W via configuration) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Protection Level | IP40 enclosure, 6kV Surge Protection, EMC Level 4 |
| Power Supply | Requires external power adapter (sold separately) |
| Dimensions & Weight | Compact industrial footprint (~1.10 kg shipping weight) |
| Warranty | 5 Years |
What’s in the Box
-
1 x Ruijie Reyee RG-NIS2100-8GT2SFP-HP Switch
-
Wall-Mounting Brackets
-
Installation Guide
-
Warranty Card
