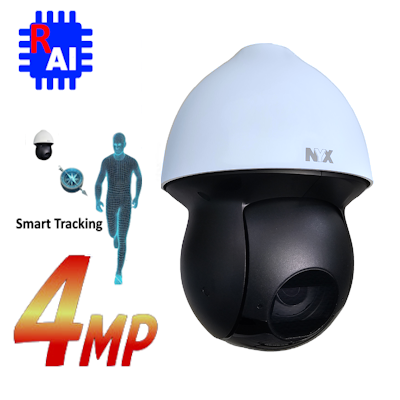

NYX IPZ4-40 STAR+

NDAA Smart Tracking IP 40x PTZ Camera with AI People & Vehicle Detection

The NYX IPZ4-40 STAR+ is a 3rd generation AI PTZ camera featuring a powerful 40x optical zoom lens and the latest STARLIGHT image sensor for outstanding night vision. Designed for 7×24 hour operation in harsh outdoor environments, it delivers 2560×1440 @ 30fps over large open areas with court-evidence-level clarity.

Equipped with a high-performance AI computing engine, the camera can detect up to 17 objects per scene, classifying humans and vehicles within 720m. When an intrusion is detected, it automatically tracks, zooms, centres, snaps, records, and triggers an alert until the object leaves the scene.

Key Specifications

• Sensor: 1/2.8" BSI+NIR Progressive Scan CMOS, Dual Gain
• Resolution: 4MP – up to 2560×1440
• Min. Illumination: Colour 0.005 lux (F1.2, AGC ON); 0 lux with IR
• Optical Zoom: 40x with accurate and fast auto-focus
• IR Range: Smart IR up to 350m
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Frame Rate: 60Hz: 1/30s–1/30,000s @ 30fps; 50Hz: 1/25s–1/25,000s @ 25fps
• WDR, 3D DNR
• Power: PoE+ and DC12V
• Protection: IP66 / IK10 / 6KV surge protection
• Operating Temp: -40°C to +60°C
• Housing: ADC12 & PC/GF
• Protocols: ONVIF, API and SDK

AI & Smart Features

• Smart tracking of humans and vehicles
• Detects up to 17 objects per scene; classifies within 720m
• Intelligent video content analytics
• Smart detection and perimeter protection
• Deep-learning engine for auto-tracking
• Excellent low-light performance with super long IR distance
• Ultra-fast rotation and tracking speed; dual belts for extended service life

Compliance & Reliability

• NDAA compliant
• Conforms to data protection regulations of major countries
• ONVIF certified for interoperability across manufacturers
• Stable supply chain with long product life cycle
• Rated for 7×24 hour outdoor operation in harsh weather
