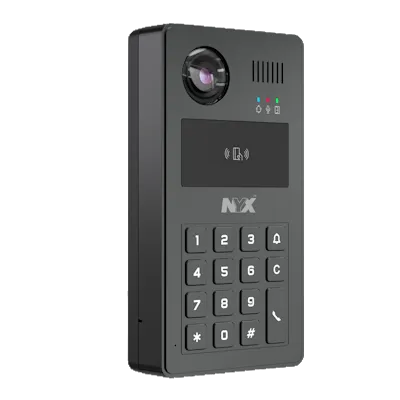

The NYX IP View KPL is a professional-grade, Full HD video intercom designed to provide seamless security and access management. Equipped with a 2MP (1920×1080) camera and H.265 high-efficiency encoding, it delivers crystal-clear real-time video while optimising storage space.
Key Features
Dual-Method Access Control: Integrated keypad for PIN code access and a card reader supporting Mifare, Desfire, and 13.56 MHz cards.
Enhanced Night Vision: ICR auto-switching filter with white light and IR support for clear visibility in total darkness up to 5 metres.
Two-Way Audio: Built-in microphone and speaker for direct communication via the Superlive+ App.
Flexible Connectivity: Supports 2.4GHz Wi-Fi (up to 50m range) and wired PoE (Power over Ethernet) or 12VDC power options.
Durable Design: Rated IP65 for weather resistance, operating in temperatures from -30°C to 60°C.
Technical Specifications
Feature
Details
Image Sensor
1/2.8" Progressive Scan CMOS
Field of View
138° Horizontal / 80.5° Vertical
Storage
Micro SD Card slot (up to 256GB)
Alarm Interface
2 × door lock outputs, 2 × Rex inputs, Wiegand, and RS485
App Support
Uses the same Superlive+ app as NYX CCTV systems
Dimensions
91 × 174 × 32.4 mm
Whether used as a standalone entry system or integrated as an additional camera into an existing NYX CCTV system, the IP View KPL offers a versatile solution for modern property security.
