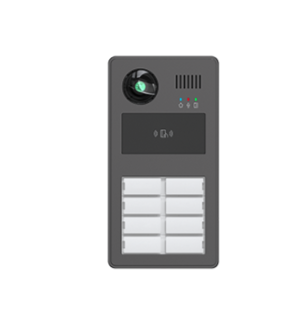

NYX DB View Intercom

The NYX DB View Intercom is a feature-rich IP video door station designed for modern access control. With a 1080P wide-angle camera, built-in card reader, PoE support, and face detection, it delivers reliable and intelligent entry management for residential and commercial applications.

Key Highlights

1080P Full HD 1/2.8" Progressive Scan CMOS camera
Ultra-wide 138° horizontal FOV lens (2.12mm @ F2.0)
120dB WDR for clear imaging in high-contrast lighting
Supports Mifare, Desfire, EM cards — up to 15,000 card capacity
Up to 8 configurable call buttons with backlight
2CH door lock output & 2CH door contact input
PoE (802.3af) powered — single cable installation
2.4G Wi-Fi support
IP65 & IK08 rated — weatherproof and vandal-resistant
Face detection and capture with person detection analytics
Micro SD card slot (up to 256GB local storage)
iOS & Android app access via P2P

Technical Specifications

Category	Specification	Details
Camera	Image Sensor	1/2.8" Progressive Scan CMOS
	Image Size	1920×1080
	Electronic Shutter	Auto/Manual; 1s ~ 1/100000s
	IRIS Type	Fixed IRIS
	Min. Illumination	Colour: 0.0085 lux @ F1.2, AGC ON; B&W: 0 lux with IR
	Lens	2.12mm @ F2.0; H-FOV: 138°, V-FOV: 80.5°, D-FOV: 161°
	WDR	120dB
	S/N Ratio	≥50dB
	BLC / HLC	Yes / Yes
	Defog	No
	DNR	2D/3D NR
	IR Distance	0.3~5m
	Protection Grade	IP65, IK08
Video & Audio	Video Compression	Main: H.265+/H.265/H.264+/H.264; Sub/Third: H.265+/H.265/H.264+/H.264/MJPEG
	Bit Rate	64Kbps ~ 6Mbps (VBR/CBR)
	Resolution	1080P, 720P, D1, CIF, 480×240
	Main Stream	1920×1080 / 1280×720 @ up to 30fps
	Sub Stream	720P/D1/CIF @ up to 30fps
	Third Stream	D1/CIF/480×240 @ up to 30fps
	Audio Compression	G711A/U
	Audio	Built-in MIC × 1, built-in speaker × 1; noise suppression & echo cancellation
	ROI	8 ROI zones, individually configurable
	Online Users	Up to 6 simultaneous users
Card Reader	Card Types	Mifare / Desfire / FM1208 / Gicard / EM Card
	Protocol	ISO14443A/B, EM41XX
	Frequency	13.56MHz & 125KHz
	Read Duration	<1s
	Read Distance	0~3cm
	Card Capacity	15,000
	Swiping Area	IC card / EM card
Buttons	Call Buttons	Up to 8 (1, 2, 4 or 8 configurable)
Buttons	Backlight	Yes
Interfaces	Network	RJ45 (10/100 Base-T)
	Video Output	No
	Storage	Micro SD card slot (up to 256GB)
	Reset	Yes
	RS485	Yes (card reader / access control)
	Wiegand	Yes (input or output configurable)
	Alarm I/O	No
	Door Lock Output	2CH
	Door Contact Input	2CH
	Exit Button	2CH
	Anti-Tamper	1CH
	Wi-Fi	2.4GHz
Access Control	People Capacity	Up to 3,000
	People Management	Add, modify, delete, view
	Door Opening Modes	Card swipe / Indoor station / App / NVMS
	Schedule	Yes
	Sub Door Station	Yes
	Event Log Capacity	50,000 events
Network & Security	Protocols	UDP, IPv4/IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, SNMP, FTP, RTMP, 802.1x, UPnP, HTTPS, HTTP POST, QoS, SIP, P2P, ONVIF
	PoE	Yes (802.3af)
	P2P	Yes (enabled by default)
	Network Security	Video/firmware/config encryption, illegal login lock, IP filtering, HTTPS, 802.1x
	Smart Alarm	Motion detection, SD card error/full, video exception
Intelligent Analytics	Analytics	Person detection, face detection, face capture
	Face Detection	Pupil distance >20px
	Face Comparison	No
General	Power	DC12V / PoE
	Power Consumption	<10W
	Working Temperature	-30°C ~ 60°C
	Humidity	<95% (non-condensing)
	Dimensions	Approx. 91mm × 174mm × 32.4mm
	Weight	Approx. 0.407 kg
	Installation	Wall mounting
	Certifications	CE, FCC, RoHS 2.0, REACH, WEEE

All specifications are for reference only and subject to change without prior notice.
