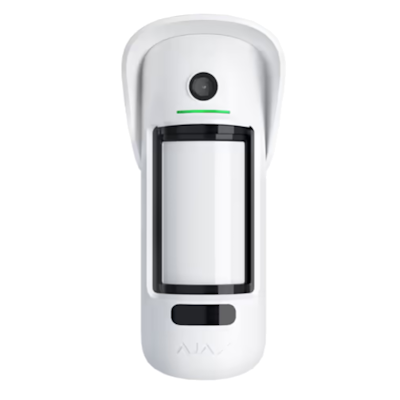

The Ajax MotionCam Outdoor PhOD is a wireless outdoor motion detector that takes security to the next level by providing visual verification of alarms and on-demand photography. The PhOD (Photos on Demand) feature allows users and monitoring stations to check the situation at a property at any time, not just during an alarm.
By combining advanced optics with a digital algorithm, this detector eliminates false alarms while providing crystal-clear images in any weather, day or night.
Key Features
-
Photos on Demand (PhOD): Take a real-time photo at any moment via the Ajax app to check on your property, regardless of security mode.
-
Photo by Scenario: Configure the detector to take photos when other Ajax devices (like a SmokeDetector or LightSwitch) are triggered.
-
LISA Digital Algorithm: A sophisticated software logic that compares two different IR signals to accurately distinguish a human from swaying trees or animals.
-
Superior Night Vision: Equipped with an HDR camera and powerful IR backlighting for clear black-and-white images even in total darkness.
-
Pet Immunity: Ignores animals up to 80 cm tall when installed at the recommended height.
-
Anti-Masking Protection: Detects attempts to paint over, cover, or obstruct the lens, ensuring the system cannot be blinded.
Technical Specifications
| Feature | Specification |
| Detection Technology | Dual PIR sensors with LISA algorithm |
| Photo Resolution | Up to 640 × 480 pixels |
| Detection Distance | Adjustable, from 3 to 15 meters |
| Detection Angles | Horizontal: 90° |
| Installation Height | 0.8 to 1.3 meters |
| Battery Life | Up to 3 years (pre-installed) |
| Ingress Protection | IP55 (Dust and splash-proof) |
| Radio Protocol | Jeweller (Alarms) & Wings (Photo transmission) |
Advanced Visual Verification
The MotionCam Outdoor PhOD addresses the "false alarm" problem by delivering the first photo in under 9 seconds. This allows owners and rapid response teams to see if an intrusion is real or if a neighbor's dog simply jumped the fence.
Installation & Connectivity
-
SmartBracket: Allows for easy mounting without disassembling the enclosure.
-
QR Code Pairing: Connects to an Ajax Hub 2 or Hub Hybrid in seconds.
-
Hood Included: Every unit comes with a protective hood to shield the sensors from rain and snow, maintaining high sensitivity.
Note: This detector requires an Ajax Hub that supports photo verification (Hub 2, Hub 2 Plus, or Hub Hybrid) to function.
